Hyundai Kona: Seat Belt Pretensioner / Components and components location

Hyundai Kona (OS) 2018-2025 Service Manual / Restraint / Seat Belt Pretensioner / Components and components location

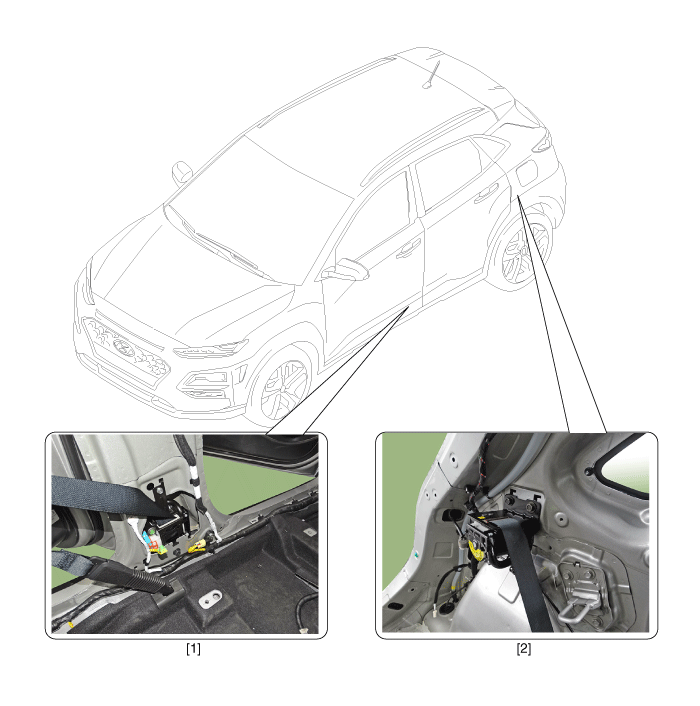

Components

1. Seat Belt Pretensioner (BPT)

2. Rear Seat Belt Pretensioner

Description and operation

Description The Seat Belt Pretensioners (BPT) are installed inside Center Pillar (LH & RH). When a vehicle crashes with a certain degree of frontal impact, the pretensioner s ...
