Hyundai Kona: Lubrication System / Oil Pan Components and components location

Hyundai Kona (OS) 2018-2024 Service Manual / Engine Mechanical System / Lubrication System / Oil Pan Components and components location

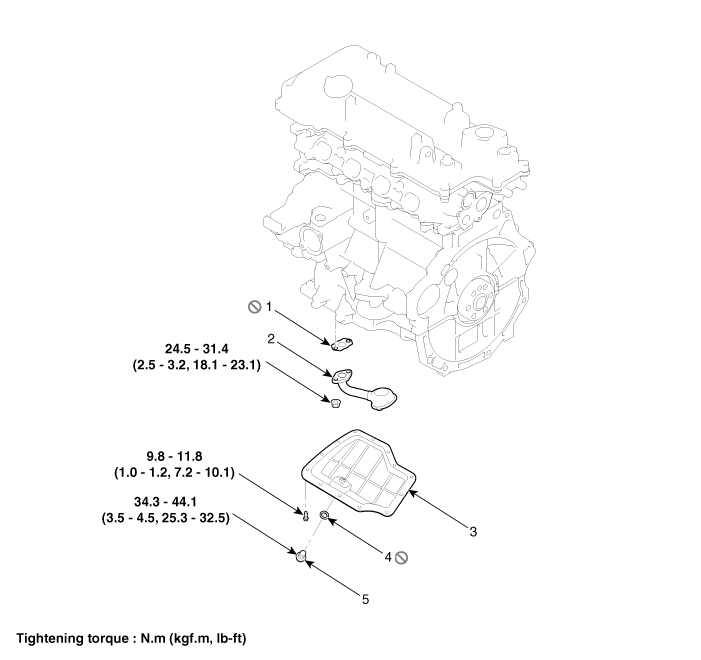

Components

1. Gasket
2. Oil screen
3. Oil pan

4. Drain plug gasket
5. Drain plug

Oil Pressure Switch Repair procedures

Removal and Installation 1. Disconnect the battery negative terminal. 2. Remove the under cover. (Refer to Engine and Transaxle Ass ...

Oil Pan Repair procedures

Removal 1. Remove the under cover. (Refer to Engine and Transaxle Assembly - "Engine Under Cover") 2. Drain engine oil. ...
