Hyundai Kona: Exterior lights / Turn signals and lane change signals
.png)

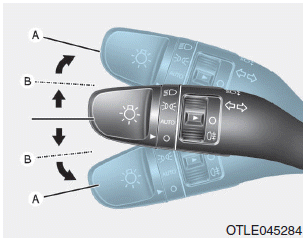

To signal a turn, push down on the lever for a left turn or up for a right turn in position (A). To signal a lane change, move the turn signal lever slightly and hold it in position (B).The lever will return to the OFF position when released or when the turn is completed.
If an indicator stays on and does not flash or if it flashes abnormally, one of the turn signal bulbs may be burned out and will require replacement.
One-touch turn signal function
To activate a one-touch turn signal function, move the turn signal lever slightly and then release it. The lane change signals will blink 3, 5 or 7 times.
You can activate/deactivate the One Touch Turn Signal function or choose the number of blinks (3, 5, or 7) from the User Settings mode on the LCD display. For more details, refer to "LCD Display" in this chapter.
Warning light and message
When the High Beam Assist (HBA) is not working properly, the warning message
will come on for a few second. After the message disappears, the master warning
light () will illuminate.
We recommend t ...
Front fog lamp
Fog lamps are used to provide improved visibility when visibility is poor due
to fog, rain or snow, etc.
Use the switch next to the headlamp switch to turn the fog lamps ON and OFF.
1. Turn on the p ...
