Hyundai Kona: Headlamp and front fog lamp aiming (for Europe) / Front fog lamp aiming
.png)

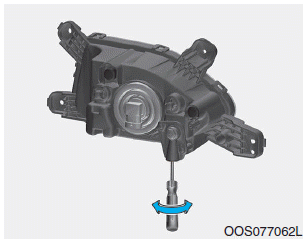

The front fog lamp can be aimed as the same manner of the headlamps aiming. With the front fog lamps and battery in normal condition, aim the front fog lamps. To aim the front fog lamp up or down, turn the driver clockwise or counterclockwise.
Headlamp aiming
1. Inflate the tires to the specified pressure and remove any loads from the
vehicle except the driver, spare tire, and tools.
2. The vehicle should be placed on a flat floor.
3. Draw vertical lines ...
Aiming point
...
