Component Location

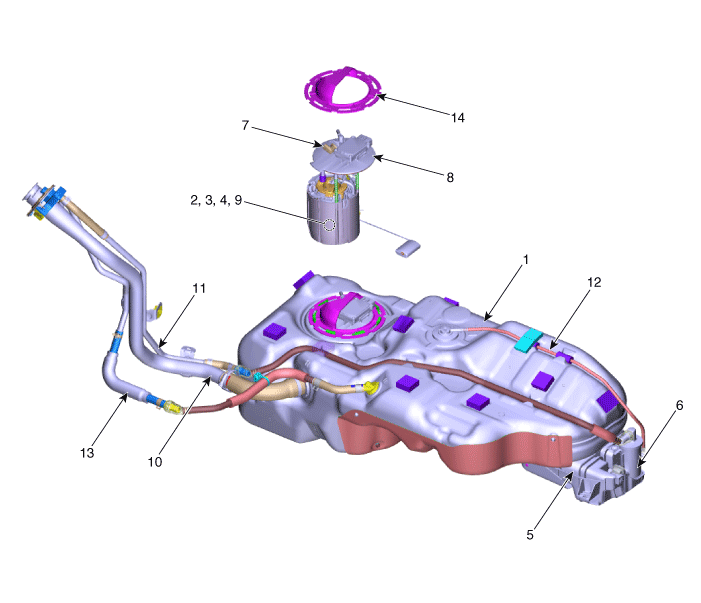

[Fuel Tank]

1. Fuel tank
2. Fuel pump
3. Fuel filter
4. Fuel pressure regulator
5. Canister
6. Fuel tank air filter
7. Fuel perssure sensor

8. Fuel pump control module (FPCM)
9. Fuel level sender (FLS)
10. Fuel filler hose
11. Ventilation tube
12. Vapor tube
13. Leveling hose
14. Fuel pump plate cover

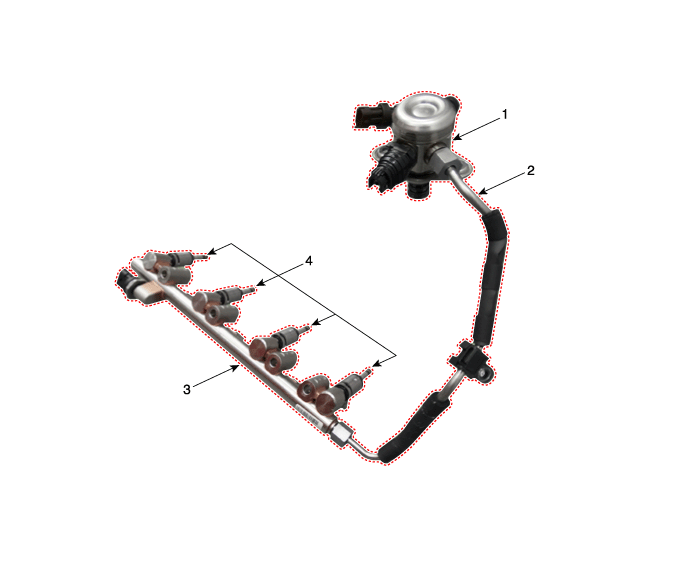

[High Pressure Fuel Line]

1. High Pressure Fuel Pump
2. High Pressure Fuel Pipe

3. Delivery Pipe
4. Injector

Repair procedures

Fuel Pressure Test 1. Release the residual pressure in fuel line (Refer to "Release Residual Pressure in Fuel Line" in this group). ...
