Hyundai Kona: Blind-Spot Collision Warning (BCW) / Components and components location

Hyundai Kona (OS) 2018-2025 Service Manual / Body Electrical System / Blind-Spot Collision Warning (BCW) / Components and components location

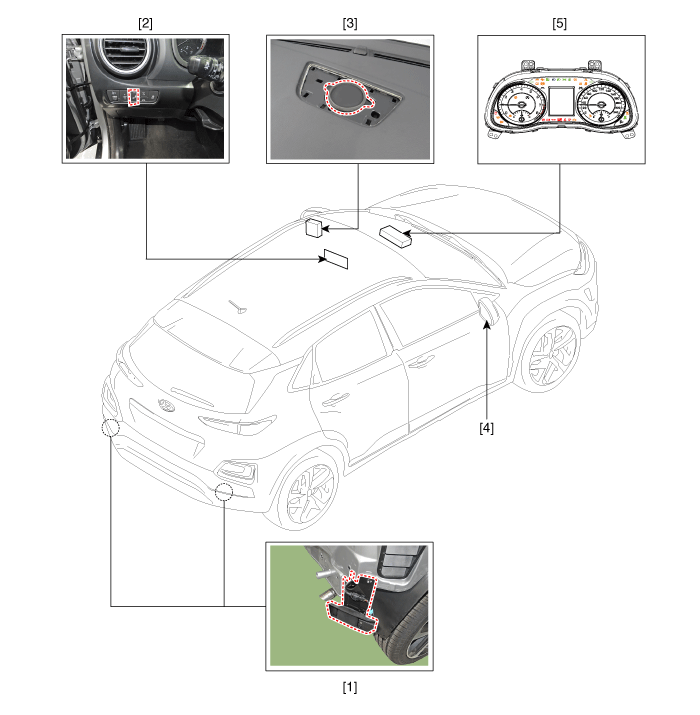

Components

1. Blind-Spot Collision Warning (BCW) Unit
2. BCW switch
3. Speaker

4. BCW warning lamp
5. Cluster

Specifications

Specifications Items Specification Rated voltage DC 12V Operating voltage ...

Description and operation

Description BCW is a system that measures the relative speed and distance from the following vehicles by using two electromagnetic wave radar sensors attached to the ...
