Hyundai Kona: Power Door Locks / Components and components location

Hyundai Kona (OS) 2018-2024 Service Manual / Body Electrical System / Power Door Locks / Components and components location

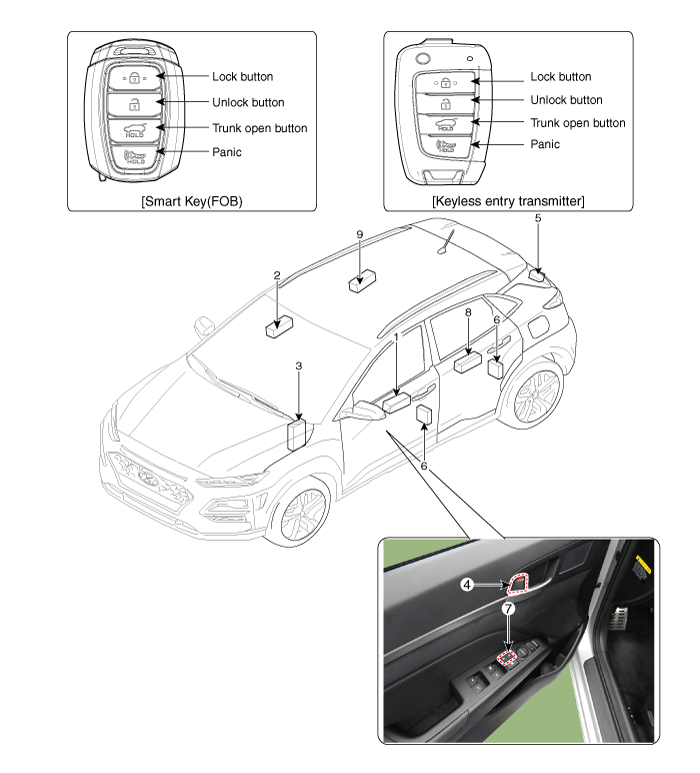

Component Location

1. DDM (Driver Door Module)
2. ADM (Assist Door Module)
3. SJB (Smart Junction Block)
4. Door lock knob
5. Trunk lid actuator

6. Door latch module
7. Door lock/unlock switch
8. RLDM (Rear Left Door Module)
9. RRDM (Rear Right Door Module)
