Hyundai Kona: Rear Bumper / Components and components location

Hyundai Kona (OS) 2018-2024 Service Manual / Body (Interior and Exterior) / Rear Bumper / Components and components location

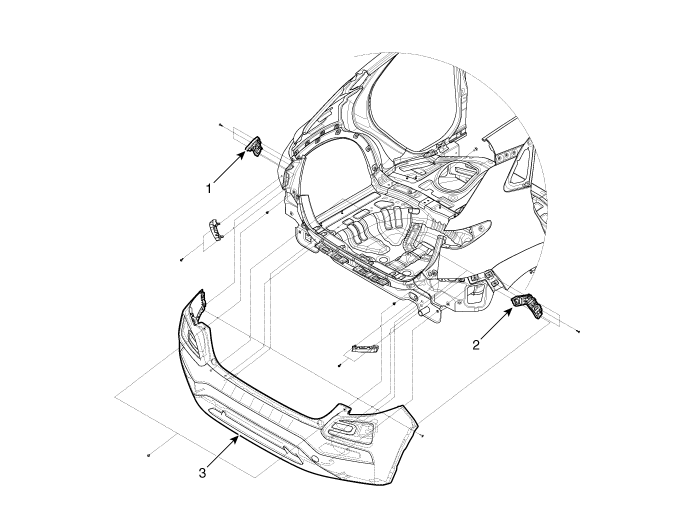

Components

1. Rear bumper side bracket [LH]
2. Rear bumper side bracket [RH]

3. Rear bumper cover

Rear Bumper

...

Rear Bumper Cover Components and components location

Component Location 1. Rear bumper cover ...
