Hyundai Kona: Air Conditioning System / Cluster Ionizer Components and components location

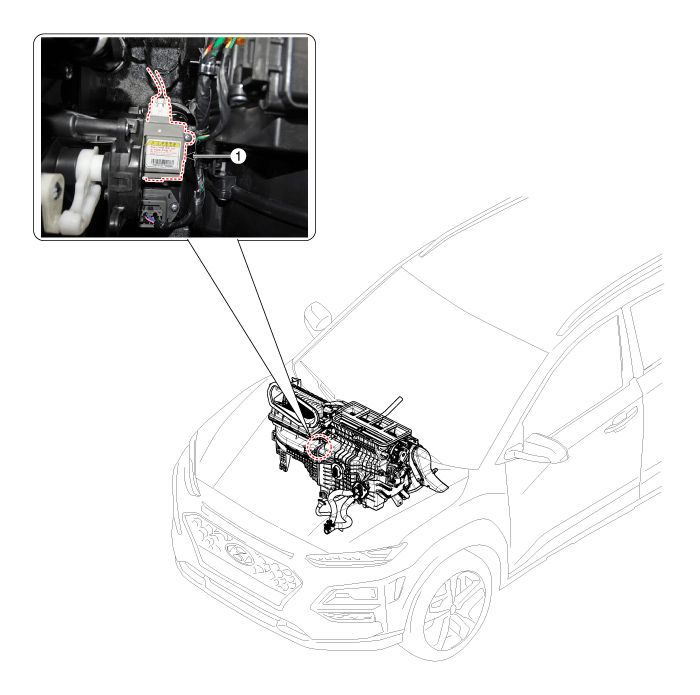

Components Location

1. Cluster lonizer
