Hyundai Kona: Forward Collision-Avoidance Assist (FCA) System / Schematic diagrams

Hyundai Kona (OS) 2018-2024 Service Manual / Brake System / Forward Collision-Avoidance Assist (FCA) System / Schematic diagrams

Schematic Diagram

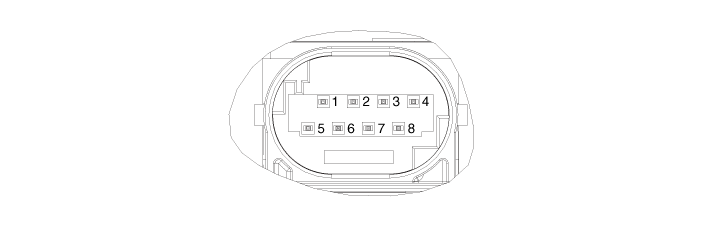

Terminal Function

No	Function
1	-
2	C-CAN Low
3	C-CAN High
4	GND
5	IGN_1
6	-
7	L-CAN Low
8	L-CAN High

Components and components location

Components The following is the configuration of the FCA system. – Detection device (radar and camera) that can recognize potential obstacles in the front. ...

Repair procedures

Inspection – The ON/OFF for FCA is included in the USM (User Setting Menu) and the default is ON. – While IGN is On, it stays at ...
