Hyundai Kona: Rear Suspension System / Rear torsion beam axle Components and components location

Hyundai Kona (OS) 2018-2025 Service Manual / Suspension System (NON-ECS) / Rear Suspension System / Rear torsion beam axle Components and components location

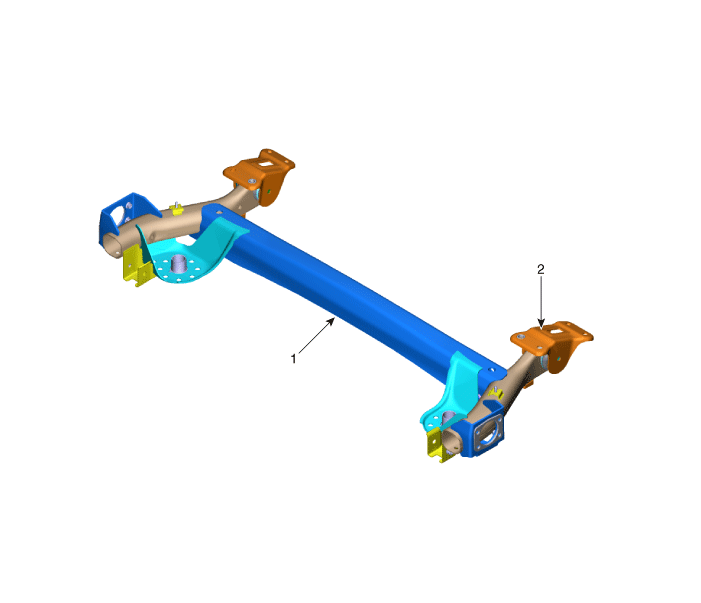

Components

1. Torsion beam axle
2. Torsion beam axle stay
