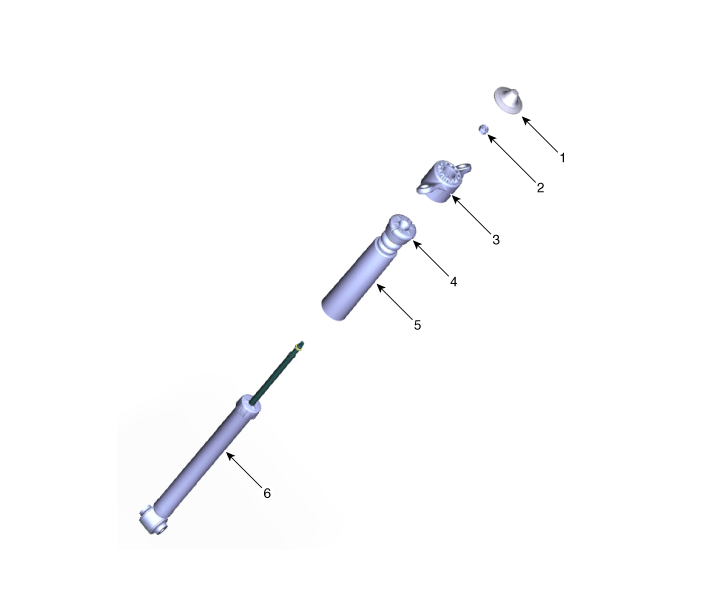

Components

1. Lock nut cover
2. Lock nut
3. Bracket assembly
4. Bumper rubber
5. Dust cover
6. Shock absorber

Components and components location
Components Location 1. Rear shock absorber 2. Coil spring 3. Torsion beam axle 4. Torsion beam axle stay ...

Rear Shock Absorber Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the rear wheel and ...
