Inspection |
1. |
The body electrocal system can be quickly diagnosed failed parts
with vehicle diagnostic system(GDS).
The diagnostic system (GDS) provides the following information.
|
2. |
Select the "Car Model" and the system to be checked in order to
check the vehicle with the tester.
|
3. |
Select the "Smart Junction Box (SJB)" to check the windshield deicer.
|
4. |

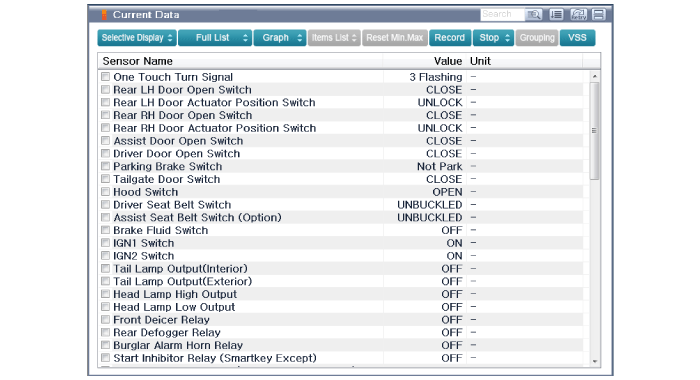

Select the "Current Date" menu to search the current state of the
input/output data.
The input/output data for the sensors corresponding to the "Smart
Junction Box(SJB)" can be checked.
|
5. |

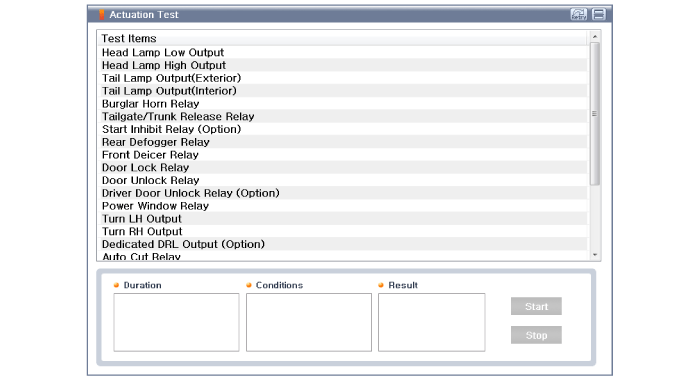

Select "Actuation Test", if you want to check the Smart Junction
Box (SJB) data operation forcefully.
|
Removal |
1. |
Disconnect the negative (-) battery terminal.
|
2. |
Remove the heater and A/C controll unit.
(Refer to Heating, Ventilation, Air conditioning - "Heater & A/C
Control Unit (Dual)")
|
Installation |
1. |
Install the heater and A/C control unit.
|
2. |
Connect the negative (-) battery terminal.
|
