Hyundai Kona: Fuel Delivery System / Fuel Pressure Sensor (FPS) Schematic diagrams
Hyundai Kona (OS) 2018-2025 Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Pressure Sensor (FPS) Schematic diagrams

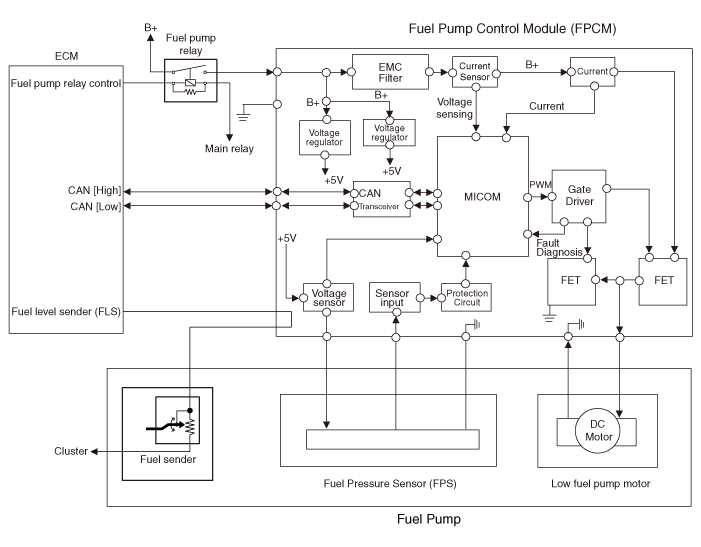

| Circuit Diagram |

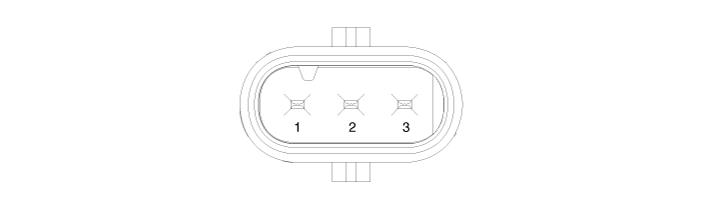

| Terminal Illustration |
| Terminal Function |
|
No |
Function |
Connected to |
|
1 |
Fuel Pressure sensor (FPS) power supply |
Fuel Pump Control Module (FPCM) |
|
2 |
Fuel Pressure sensor (FPS) signal input |
Fuel Pump Control Module (FPCM) |
|
3 |
Fuel Pressure sensor (FPS) groun |
Fuel Pump Control Module (FPCM) |
Fuel Pressure Sensor (FPS) Specifications
Specification
Pressure
[kPa (kgf/cm², psi)]
Output Voltage (V)
50 (0.51, 7.3)
0.3
600 (6.12, 87.0)
...
Fuel Pressure Sensor (FPS) Repair procedures
Inspection
1.
Connect the GDS on the Data Link Connector (DLC).
2.
Check the output voltage of fuel pressure sensor (FPS).
...
