Hyundai Kona: Front Axle Assembly / Front Hub / Knuckle / Tone Wheel Components and components location

Hyundai Kona (OS) 2018-2025 Service Manual / Driveshaft and axle (2WD-FF) / Front Axle Assembly / Front Hub / Knuckle / Tone Wheel Components and components location

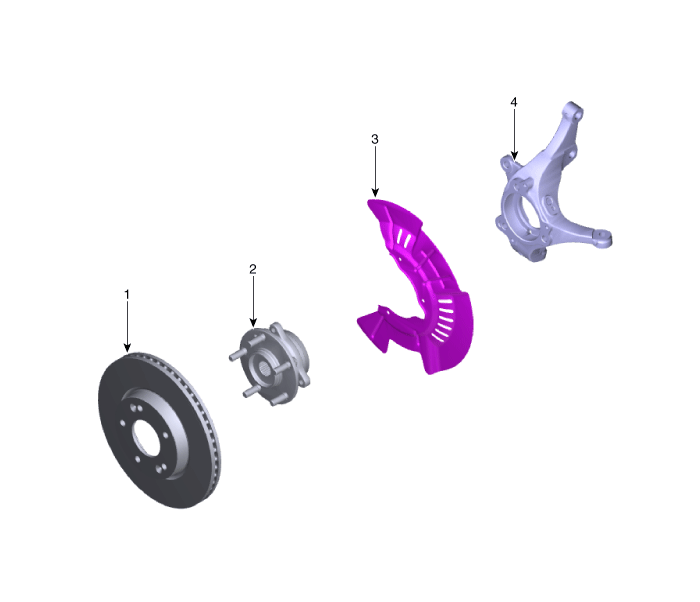

Components

1. Disc brake
2. Hub bearing
3. Dust cover
4. Front knuckle

Front Axle Assembly
...

Front Hub / Knuckle / Tone Wheel Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and ...
