Hyundai Kona: Brake System / Front Disc Brake Components and components location

Hyundai Kona (OS) 2018-2024 Service Manual / Brake System / Brake System / Front Disc Brake Components and components location

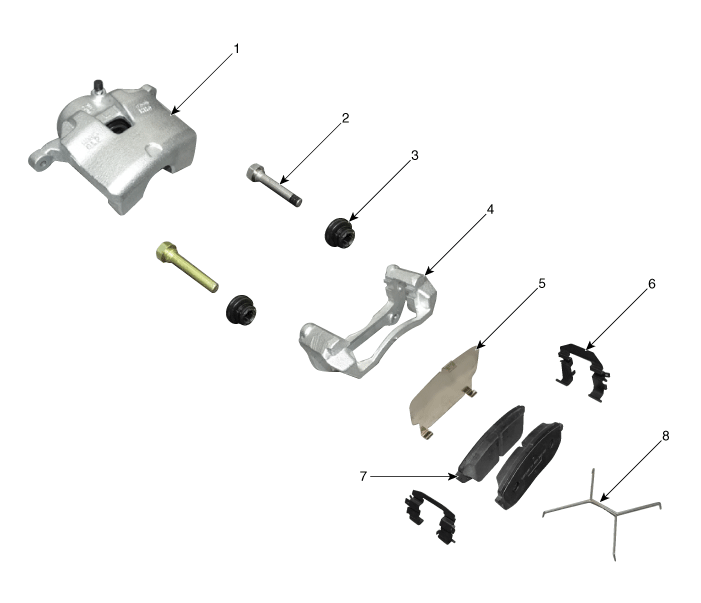

Components

1. Caliper body
2. Guide rod pin
3. Guide rod pin boot
4. Caliper carrier
5. Pad inner shim
6. Pad retainer
7. Brake pad
8. Pad return spring

Brake Pedal Repair procedures
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel. (Refer to ...

Front Disc Brake Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel an ...
