Hyundai Kona: Multifunction Switch / Components and components location
Hyundai Kona (OS) 2018-2025 Service Manual / Body Electrical System / Multifunction Switch / Components and components location

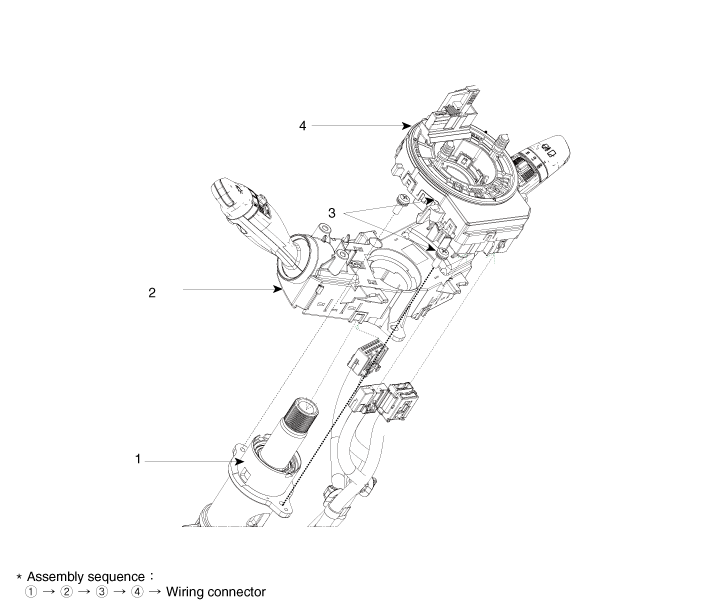

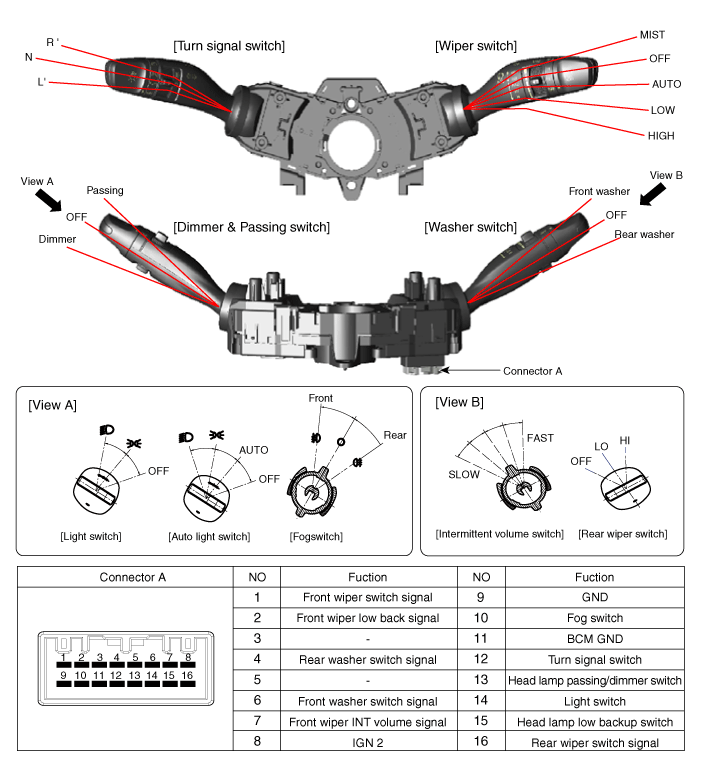

| Component |
| 1. Steering column 2. Multifunction switch |
3. Screw 4. Clock spring |
Specifications
Specifications
Items
Specifications
Rated voltage
DC 12V
Operating temperature range
-40 to +176°F (- ...
Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the steering wheel.
(Refer to Steering System - "Steering W ...
