Hyundai Kona: Front Door / Components and components location

Hyundai Kona (OS) 2018-2025 Service Manual / Body (Interior and Exterior) / Front Door / Components and components location

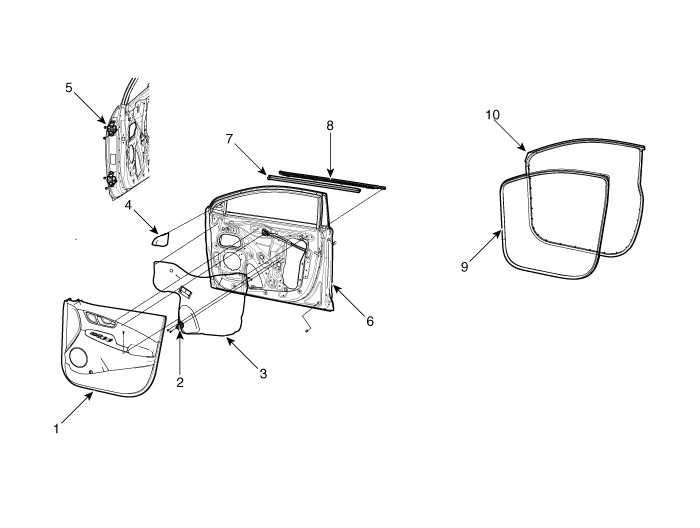

Components

1. Front door trim
2. Front door full handle mounting support
3. Front door trim seal
4. Front door quadrant inner cover
5. Front door hinge

6. Front door panel
7. Front door belt inside weatherstrip
8. Front door belt outside weatherstrip
9. Front door body side weatherstrip
10. Front door side weatherstrip

Repair procedures

Adjustment Glass Adjustment • Check the glass run channel for damage or deteriora ...
