Hyundai Kona: Motor Driven Power Steering / Components and components location

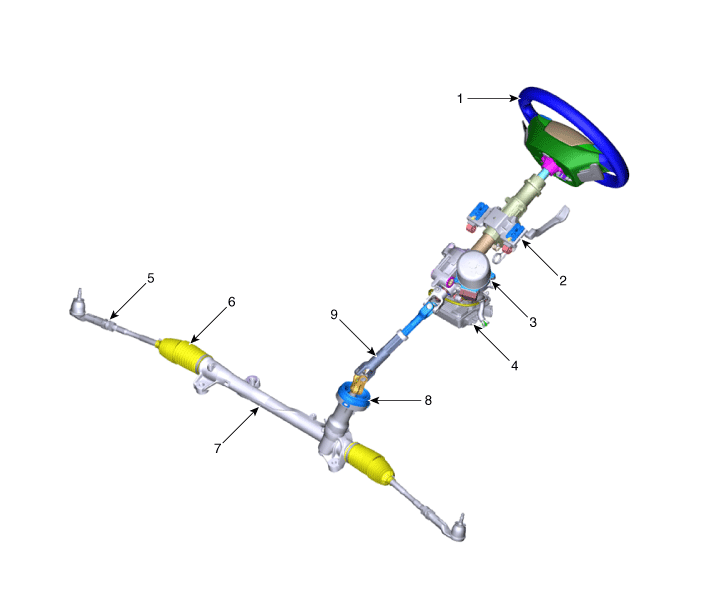

| Components |
| 1. Steering wheel 2. Steering column 3. MDPS motor 4. MDPS ECU 5. Tid rod end |
6. Bellows 7. Steering gear box 8. Dust cover 9. Universal joint |
Description and operation
Description
MDPS (Motor Dirven Power Steering) system uses an electric motor to assist the
steering force and it is an engine operation independent steering system.
MDPS contro ...
Schematic diagrams
Schematic Diagrams
[MDPS]
Terminal function
Type
Pin No
Description
Battery
1
Batt ...
