Hyundai Kona: Engine Control System / Boost Pressure Sensor (BPS) Schematic diagrams

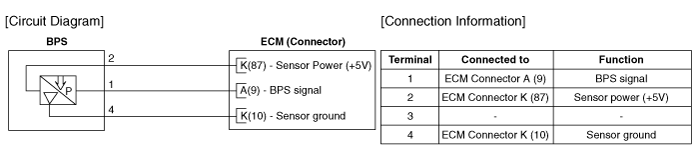

Circuit Diagram

Harness Connector

Boost Pressure Sensor (BPS) Specifications
Specification Pressure [kPa (kg/cm² / psi)] Resistance (kΩ) 32.5 (0.33, 4.71) 0.5 284 (2.90, 41.19) ...

Boost Pressure Sensor (BPS) Repair procedures
Inspection 1. Connect a GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the BPS at idle and IG ON. ...
