Hyundai Kona: Cruise Control operation / To resume preset Cruising speed
.png)

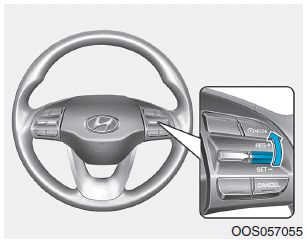

Push the toggle switch up (RES+). If the vehicle speed is over 30 km/h (20 mph), the vehicle will resume the preset speed.
Cruise Control will be canceled when:
Depressing the brake pedal.
Depressing the clutch pedal. (for manual transmission vehicle)
Pressing the O (Cancel) button located on the steering wheel.
Pressing the (CRUISE) button.
Both the ...
To turn Cruise Control off
Press the (CRUISE) button (the (CRUISE) indicator light will go off).
Press the button (The cruise indicator light will go off.). (if equipped
with Speed Limit Control) - With the Cruise Control ...
