Hyundai Kona: Head Up Display System / Head Up Display Unit Components and components location

Hyundai Kona (OS) 2018-2024 Service Manual / Body Electrical System / Head Up Display System / Head Up Display Unit Components and components location

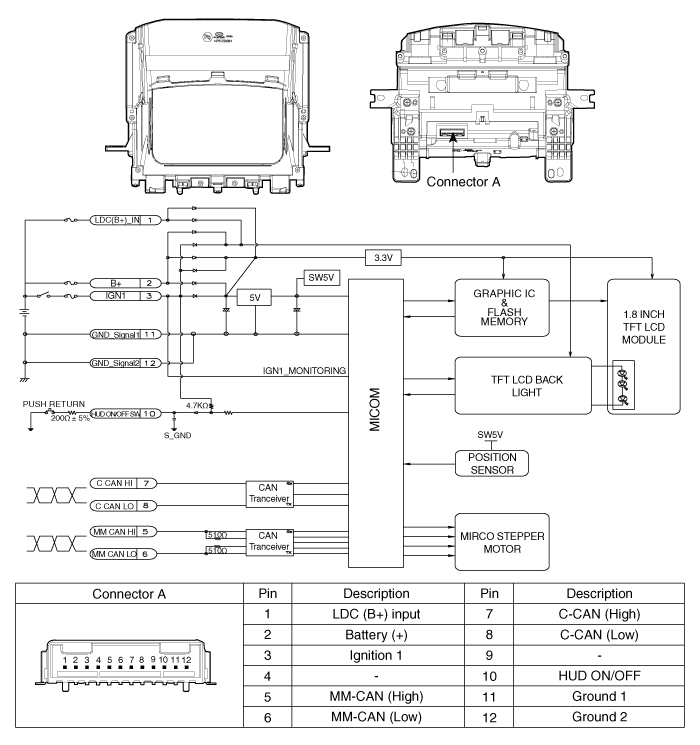

Component

Description and operation

Description HUD system displays various information on the combiner which minimizes the driver’s eye movement to enhance safety and convenience. The Head Up Display r ...

Head Up Display Unit Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the instrument cluster. (Refer to Indicator ...
