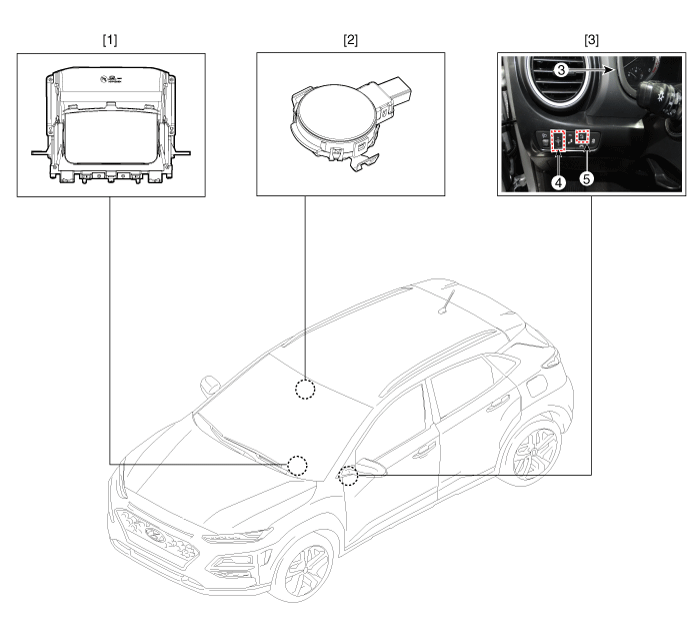

Components Location

1. Head Up Display (HUD)
2. Light sensor
3. Cluster

4. Rheostat switch
5. Head Up Display switch

Description and operation

Description HUD system displays various information on the combiner which minimizes the driver’s eye movement to enhance safety and convenience. The Head Up Display r ...
