Hyundai Kona: Blower / Blower Unit Components and components location

Hyundai Kona (OS) 2018-2024 Service Manual / Heating, Ventilation and Air Conditioning / Blower / Blower Unit Components and components location

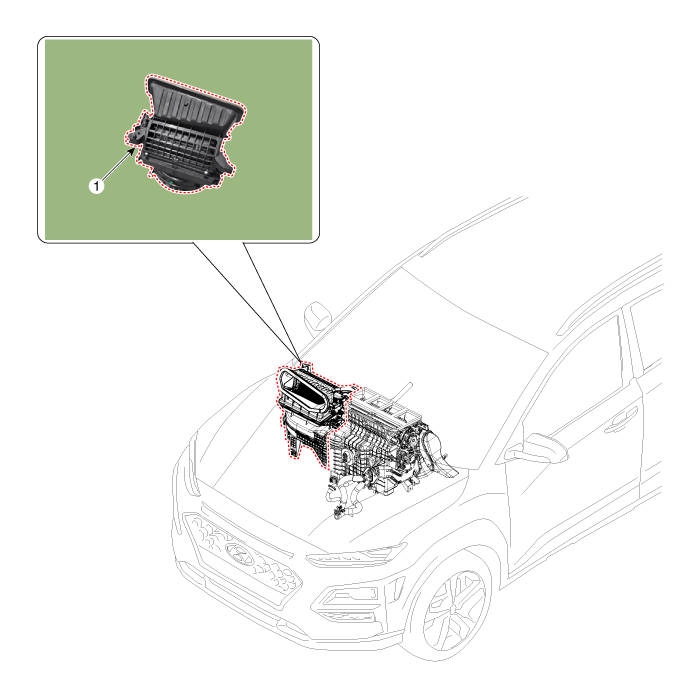

Component Location

1. Blower unit assembly

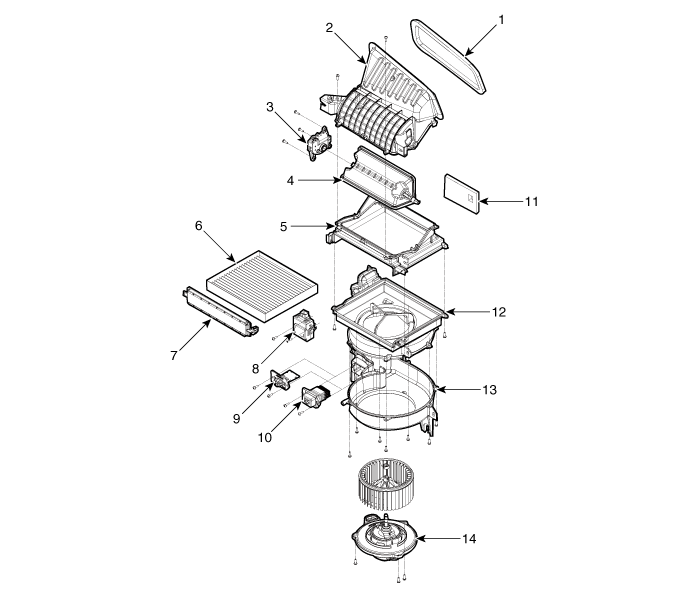

Components

1. Intake seal
2. Intake duct case
3. Intake actuator
4. Intake door
5. Intake lower case
6. Air filter
7. Air filter cover

8. Cluster ionizer
9. Resistor
10. Power mosfet
11. Pad
12. Blower upper case
13. Blower lower case
14. Blower motor
